Specifications

System Architecture

• Intel® Mobile Module (IMM) based embedded controller

• MMC2 controller dedicated to Pentium® II/III CPU

• All features on board (SSD, Ethernet, VGA, LCD Panel)

• Micro board with standard 3.5" drive form factor

• World's smallest Pentium® III embedded controller

• Intel® Mobile Module (IMM) MMC2 (400 pin) CPU support

• Intel® Pentium® II/III 233MHz to 700MHz

• 256/512KB L2 Cache on module

• Intel® 440BX AGP set on module

 Main Memory

• SDRAM support

• 8MB to 256MB (Max.)

• 144pin SO-DIMM socket x1

• Award® System BIOS

• Plug & Play support

• Advanced Power Management support

• 2M bits flash ROM

• C&T 69000 VGA controller

• TFT LCD/DSTN LCD/CRT control

• 2MB SDRAM on die

• Maximum Res. Color & Refresh Rate

  Resolution	Colors	Refresh Rate (Hz)
  1280 x 1024	256	60
  1024 x 768	16bits (High color)	85, 75, 60
  800 x 600	24bits (True color)	85, 75, 60

• Drivers support: Windows® 95/98/2000, Windows® NT4.0

• 15 pin CRT connector x 1, Universal LCD Panel connector x 1

• Intel® 82559 Single Ethernet controller

• 10 Base T/100 Base TX support, full duplex

• Compliant with PCI V2.1, IEEE802.3, IEEE 802.3U

• Drivers support: DOS/Windows®, Netware, Windows® 95/98/2000, Windows® NT4.0

• RJ45 CRT connector x 1

• Winbond 83977 Super I/O on board

• SIO x2 (RS232/422/485 x1, jumper selectable), 10 pin connector x2

• PIO x1, Bi-directional, EPP/ECP support, 26 pin connector x1

• Floppy disk controller: 3.5" 720K/1.2MB/1.44MB/2.88MB support, 26 pin connector x1

• On chip enhanced IDE x1: PIO up to mode 4, DMA master up to mode 2, 44 pin connector x1

• Keyboard, mouse controller: 6 pin mini DIN connector x1 (both KBD & mouse, PS/2 mode)

• USB port x1

• IrDA pin reserved

• On board buzzer x1

• On board power connector: 4 pin additional power connector x2

• 2 pin header for reset SW x1

• 5 pin for keylock x1

• High precision real time clock/calendar with battery back up

• On board reserved socket for DOC of M-systems: 2MB~144MB, etc

 Watchdog Timer

• 1,2,4...64 seconds time-out intervals

• LAN x1, USB x1, KBD x1, Mouse x1, 20 pin connector with housing

• PCI/ZV port expansion connector reserved

• 145mm(L) x 102mm(W)

• +5V: 6A (Max.)

• +12V: 4A (Max.)

• Operating temperatures: 0°C to 60°C

• Storage temperatures: -20°C to 80°C

• Relative humidity: 10% to 90% (Non-condensing)

• CE approval

• FCC Class A

Order Information

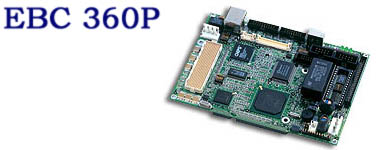

EBC 360P

   3.5" MMC2 Pentium® II/III Embedded Controller w/VGA/LAN
