Specifications

• 3.5" small form factor with Dimensions: 143 x 102 mm

• On board VIA C3 Processor EBGA package with 128KB Level 1 and 64 KB level 2 cache

• FSB 100/133MHz

• PCI V2.2 compliant

• Onboard VIA C3 Processor EBGA Package with 128KB Level 1 and 64KB Level 2 Cache

• 800MHz+ CPU on board, and feature VIA C3 series CPU with EBGA Package

• CPU FSB 100/133MHz

• One 144-pin SO-DIMM. Support Max memory size to 512MB

• Award system BIOS

• Optional ACPI Support

• Advanced power management support

• 4M bits flash ROM

• VIA 8606 (Twister T) 100/133MHz North Bridge

• VIA VT82C686B PCI SUPER-I/O integrated peripheral controller

• PCI V2.2 compliant

• RealTek RTL8139C Ethernet Controller x1

• Single Chip 10/100 Base TX support, full duplex

• Compliant with IEEE802.3X

• Boot from LAN function

• Drivers support: DOS/Windows®, Windows® 95/98/2000, Windows® NT, Netware, SCO Open Server 5.0, Linux 7.2 or later, FreeBSD

• RJ45 with LED connector x1

• VT82C686B and AC97 ver. 2.0 compliant interface, Multi-stream Direct Sound and Direct Sound 3D acceleration

• Audio interface:
  CD audio in, Line in (Internal connector)
  Microphone in, Speaker out (with Amplifier)

• VIA 8606 Integrated Savage4 2D/3D/Video Accelerator

  • Optimized Shared Memory Architecture (SMA)

  • 8/16/32MB frame buffer using system memory

  • Single cycle 128-bit 3D architecture

  • Full internal AGP 4X performance

  • Next generation, 128-bit 2D graphics engine

  • High quality DVD video playback

  • 3D Rendering Features

• Extensive LCD Support

  • 36-bit DSTN/TFT flat panel interface with 256 gray shade support

  • Integrated 110MHz LVDS interface

• Drivers support: Windows® 95/98/2000, Windows® NT4.0, Linux

• 15Pin D-Sub VGA Output

• LVDS Interface Connector x2

• TTL LCD Interface Connector x1

• VT1621 TV encode

• RCA TV out or S-Video output

• Supports NTSC, NTSC-EIA (Japan) and PAL TV formats

• VIA Fire II VT6306

• IEEE 1394-1394A compliant

• OHCI compatible programming interface

• 100/200/400Mbps data transfer rates

• PCI 2.1 interface

• 1394 Port x3 (one direct output, 2 port by Pin Header reserved)

• VIA 686B South Bridge Integrated UltraDMA-33/66/100 master mode EIDE controller

• Support UltraDMA-33/66/100 IDE with 44 pin connector x1

• Internal Compact Flash socket x1 (True Type IDE Mode)

• NEXCOM PCI Proprietary Connector for EBK Module to support PCI devices

• PC/104 connector: One 16-bit 104-pin connector onboard

• 143mm(L) x 102mm(W)

 On Chip and On board I/O

• SIO x2, with 4x16C550 UARTs, 10 pin header (2.0mm) x2 ; one for RS422/485

• PIO x1, bi-directional, EPP/ECP support, 26 pin connector x1

• 6 pin mini DIN connector x1, for PS/2 keyboard/mouse

• On board USB port x2

• On Board buzzer x1

• Digital I/O TTL level (4 in 4 out)

• On board 3 pin header for I²C, one pin for GND

• On board 5 pin header for IrDA Tx Rx

• On Board 2 pin header for Reset SW

• On Board 2 pin header for power SW (ATX Mode)

• On Board 2 pin Power LED Header

• 3 pin Power Connector for CPU FAN

• 2 Pin IDE Active LED Header

• On chip RTC with battery back up

• External Li Battery x1

• Watchdog timeout can be programmable by Software from 1 second to 127 Sec or 1 minute to 127 minute

• Derived from Super IO to support system monitor

• 5 voltage (For +3.3V, +5V, +5Vsb, +12V, Vcore and Vtt)

• Fan speed For CPU

• Two temperature

• Drivers support: Windows® 95/98/2000, Windows® NT4.0

• 6 PIN Power Input Connector

  PIN Define	Voltage	Power Requirement
  PIN 1	+5V	6A
  PIN 2	+5V
  PIN 3	GND	--
  PIN 4	GND	--
  PIN 5	GND	--
  PIN 6	+12V	1A (typical)

• Reserve 2 pin Header for +5Vsb to support ACPI function

• 3.3V is converted from +5V

• Accessory Power Converter Cable:

  1. Two 4P to 6P (For AT Power Supply)

  2. ATX Power Connector to 6P+ 2 Pin Power SW (For ATX Power Supply) + 3Pin (+5Vsb, PSON, GND)

  3. Optional Power Module to support NoteBook Type Adapter (16Vdc~24Vdc input)

• Operating temperatures: 0°C to 60°C

• Storage temperatures: -20°C to 80°C

• Relative humidity: 10% to 90% (Non-condensing)

• CE approval

• FCC Class A

Order Information

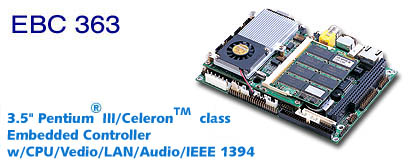

EBC 363

3.5" Low Power Embedded Board with on board 800MHz+ CPU
