FFD 2.5" Ultra ATA
 |
|
Overview
M-Systems' Fast Flash Disk (FFD) 2.5" Ultra ATA Flash Disk is a state-of-the-art solid-state disk, based on NAND flash technology, that provides the functionality of a hard disk with no moving parts. FFD 2.5" Ultra ATA Flash Disk is an ideal, rugged storage solution for mission-critical applications that must operate under harsh environmental conditions. FFD 2.5" Ultra ATA Flash Disk delivers outstanding reliability and enhanced endurance thanks to M-Systems' TrueFFS® technology, which applies dynamic wear-leveling and bad block management. Due to its unique design, FFD 2.5" Ultra ATA Flash Disk provides high-performance sustained read and write rates up to 100MB/s and supports Ultra DMA 0-5, DMA 0-2 and PIO 0-4 transfer modes. FFD 2.5" Ultra ATA Flash Disk is fully compatible with the ATA-6 interface, and has the same mechanical dimensions and mounting holes of traditional mechanical disks. It is a true drop-in replacement for rotating 2.5" ATA disks with highest reliability. M-Systems' family of FFDs has been providing rugged, mass storage solutions to an expansive range of industries since 1997. In air force, navy and army installations, it has been field-tested inside data recorders, moving maps, sonar, radar, fire control systems, black boxes, data acquisition systems, C4ISR, telemetry systems, rugged laptops and servers. |
|
IDE
3000 2.5" |
The IDE 3000
is a cost effective product family with IDE interface. The IDE
3000 is the updated family of the IDE 2000. These product
families are compatible with the IDE bus (which uses a standard
called ATA). IDE 3000 product family does not require driver
installation. It uses on the IDE/ATA driver built into the BIOS. What
markets does the IDE 3000 family target? |
Overview
|
IDE 4000 1.8" and 2.5"
 |
|
|
M-Systems' IDE 4000 is a 1.8" and 2.5" solid-state flash disk with no moving parts. The IDE 4000 provides capacities up to 4GB with improved cost structure while supporting both PIO and DMA transfer modes. Designed for telecommunication, public safety, military ,aerospace and point of sale systems, the IDE 4000 is a true drop-in replacement for rotating disks where top reliability is required while maintaining affordable cost. |
| M-System DiskOnChip (DOC) |
|

|
| Pin-Out 图 | ||
| DiskOnChip
2000 DIP |
 |
DiskOnChip
2000 TSOP |
 |
|
 |
概述 M-Systems的 DiskOnChip 2000 为标准32-pin DIP或TSOP-I包装高效能之单芯片快闪磁盘. 此一独特之信息保存解决方案能提供最具成本效益之信息保存方式，远胜于常规硬盘。特别适用于有空间限制及容量变化之应用。 DiskOnChip 2000能简易地安装于CPU板上, 安装后你马上就拥有可开机启动之快闪磁盘. 网际网络设备、瘦身型客户终端机（Thin Clients）及内嵌式主机板之最佳解决方案 DiskOnChip 2000已经成为网际网络设备(如 视讯转接器，set-top-boxes)、瘦身型客户终端机(or 精简型终端机)及内嵌式单板计算机的标准快闪磁盘模块。 TrueFFS DiskOnChip 2000包含内建之M-Systems专利TrueFFS® (True Flash File System)技术，提供完整之信息读/写能力及硬盘仿真。TrueFFS于磁区及档案层级皆与硬盘兼容。 DiskOnChip 2000可在所有主要操作系统中运作，包括DOS, Windows Embedded NT/CE/2000, pSOS+, VxWorks, QNX等。经特别设置后，DiskOnChip 2000也可用于无操作系统或非x86之环境下运作。 可靠性 使用TrueFFS再加上内建之EDC/ECC（错误侦察及除错）提供最佳之信息保存可靠性。即使在最严格的操作条件下（例如停电等情况）。先进的损耗平衡功能(Wear leveling)可提供最长之快闪际内存寿命及最大之使用量。 DiskOnChip 2000规格 兼容性 软、硬件皆可与8MB DiskOnChip Millennium 兼容 DiskOnChip 2000 TSOP将与未来其它DiskOnChip TSOP产品兼容 主机操作系统 (Host OS) 支持 DOS、Windows Embedded NT/CE/2000、Linux、pSOS、QNX, BE等 (能针对其他作业环境做订制) 容量 DIP: 16, 24, 32, 48, 64, 80, 96, 112, 144, 160, 192, 224, 256, 288 Mbytes TSOP I: 16 Mbytes 效能 持续读取速度: 1.4 Mbytes/sec 持续写入速度: 500 Kbytes/sec Burst传输读取速率: 5 Mbytes/sec Burst传输写入速率: 5 Mbytes/sec 包装类型 32-pin DIP或 TSOP-I 尺寸（公厘） DIP:Low Profile: 41.75 x 17.90 x 5.50 High Profile: 41.80 x 18.10 x 12.80 TSOP I: 20 x 12.40 x 1.20 流消耗 待机500mA (最大) 运转 25mA (typical), 45mA (maximum) 电压 DIP: 3.3V或5V TSOP I: 3.3V 操作温度 0°C - +70°C (商用) -40°C - +85°C (扩充型) 保存温度 -55°C - +85°C (商用) 湿度 相对湿度10% - 90%，无凝结 EDC/ECC 增强型Reed-Solomon EDC/ECC逻辑针对每一512-byte区块信息提供以下之检测及校正能力: 修正两组10-bit符号，包含两个随机位元错误 修正single bursts至11 bits 检测single bursts至31 bits以及double bursts至11 bits 检测4个随机位元错误 |

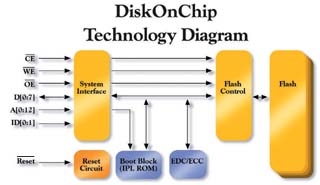

DiskOnChip技术界面图(Technology
Diagram) |

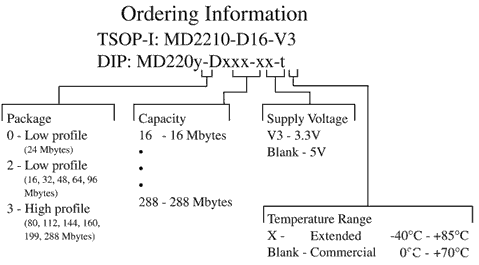

订购信息 |
 |
